Photo Flash Charger Capacitor with IGBT

0 Credits


Login for download

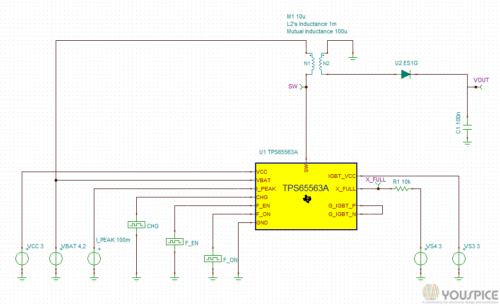

SPICE simulation of a photo flash charger capacitor and flashing xenon tube with an insulated gate bipolar transfer (IGBT) ON driver. This device has an integrated voltage reference, power switch (SW), comparators for peak current detection/power SW turnon detection/charge complete detection, an IGBT driver, and control logics for charging applications/driving IGBT applications.

  • Free
  • Simple
  • 11-20
  • TINA
  • 7+
  • Yes
  • primary side power mosfet switch zoom sw pulse Vout charge completion indicator
