1900hz notch filter gain and phase

Twin Tee 1900Hz Fliege Notch Filter

0 Credits

867b1580-15e1-4cf4-9b6f-fc652ea10df6.rar

Login for download

Category: Active Filters

Description
Comments

Description

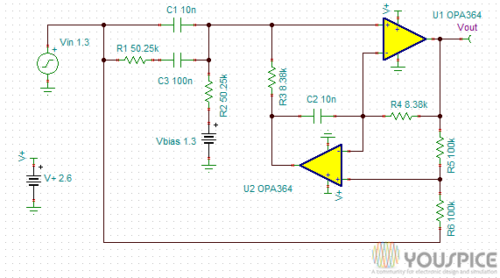

SPICE simulation of a Twin Tee 1900Hz Fliege Notch Filter.

Project Type: Free
Complexity: Intermediate
Components number: 11-20
SPICE software: TINA
Software version: 7+
Full software version nedeed : Yes
Screenshots simulation images:

2 reviews for Twin Tee 1900Hz Fliege Notch Filter

srotyliano – May 17, 2012

I’ve tried running this Fliege filter in Spice but keep getting convergence
kupta55 – May 18, 2012

Hi, I suppose you’re simulating with TINA. I’ve no problems, Analysis/AC Analysis/AC Transfer Characteristic… and DC Analysis/DC Transfer Characteristic… No convergence issues.
