Voltage Controlled Amplifier for Ultrasound applications

Description

This VCA is specifically designed for ultrasound applications, suitable for high-end and portable systems. 8 channels VCA, a low power passive mixer and a low noise summing amplifier to accomplish onchip continuous wave Doppler beamformer.

• Project Type: Free
• Complexity: Advanced
• Components number: 11-20
• SPICE software: TINA-TI
• Software version: 9+
• Full software version nedeed : No

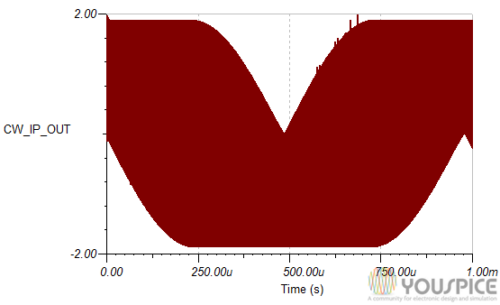

• Screenshots simulation images:
