Analog current-Voltage Driver for Industrial Applications

0 Credits

1e577eea-ca82-477e-aa5f-0f9bd9c8384c.zip

Login for download
Category:

Description

SPICE simulation of XTR300, an output driver for industrial applications as PLC output programmable drivers. The output can be configured as current or voltage by the I/V pin.Two external components are required: a gain-setting resistor and a loop compensation capacitor.

  • Free
  • Simple
  • 11-20
  • TINA-TI
  • 9+
  • No

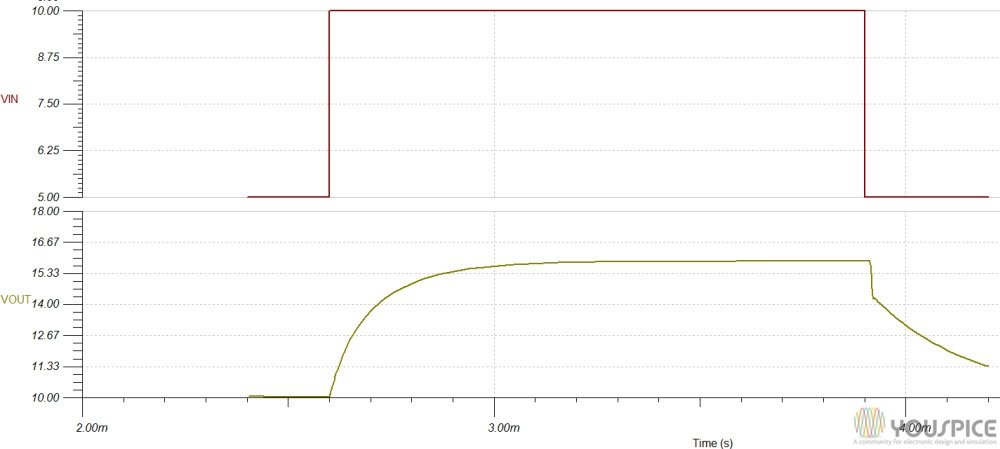

  • voltage transient bode plot
