Square Wave Generator with Adjustable Duty Cycle

1 Credits

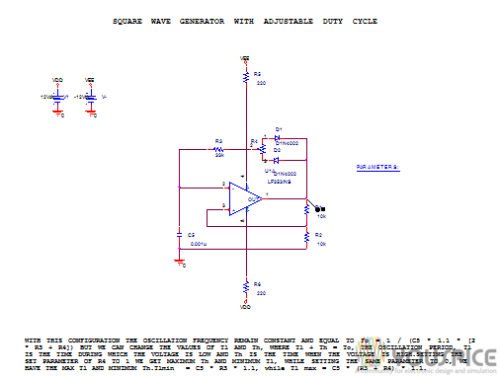

SPICE simulation of a square wave generator implemented with an operational amplifier. After choosing the components values to fix the oscillation frequency, it ‘s possible to adjust the duty cycle by a trimmer.

  • For-Credits
  • Simple
  • 11-20
  • PSpice
  • 9.1+
  • No
  • high and low duty cycles several duty cycles FFT waveforms
