Two Stage BJT Microphone Preamplifier

0 Credits

52953891-b036-4c53-95cb-602c57cbcf18.rar

Login for download

Category: Discrete Preamplifiers

Description
Comments

Description

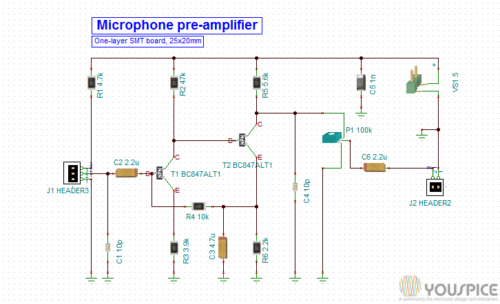

SPICE simulation of a microphone preamplifier with a couple of BC847, one layer board with SMT technology.

Project Type: Free
Complexity: Simple
Components number: 11-20
SPICE software: TINA
Software version: 7+
Full software version nedeed : Yes
