gain and phase of PI controller
DC gain limited by R3
proportional and integrator response in transient analysis

PI TEC Controller

0 Credits

24d34b12-fbc4-460b-a3f9-89ed32282a93.zip

Login for download
Category:

Description

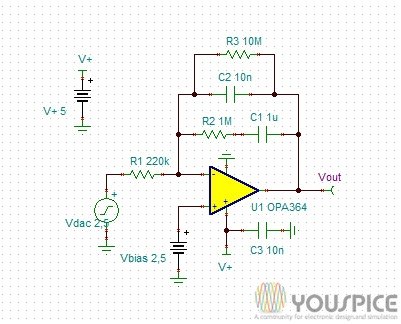

Proportional integrative controller implemented with a simple analog circuit. The feedback components control the frequency response of the operational amplifier OPA364. The resistor R3 is added to limit the gain at low frequency.

  • Free
  • Simple
  • 11-20
  • TINA
  • 7+
  • No
  • gain and phase of PI controller DC gain limited by R3 proportional and integrator response in transient analysis
