State Variable Digital Filter

Description

SPICE simulation of the digital version of an analog state variable filter. As for its analog version Lowpass, highpass, bandpass, and band reject filters are available simultaneously.

• Project Type: Free
• Complexity: Intermediate
• Components number: 11-20
• SPICE software: PSpice
• Software version: 9.1+
• Full software version nedeed : No

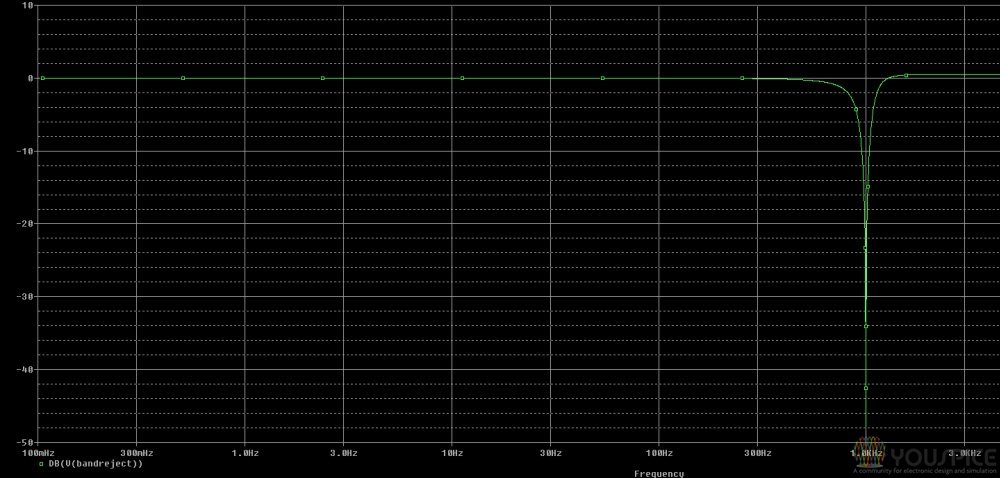

• Screenshots simulation images:
