Stepper Motor Drived by a Control Unit

0 Credits

Login for download

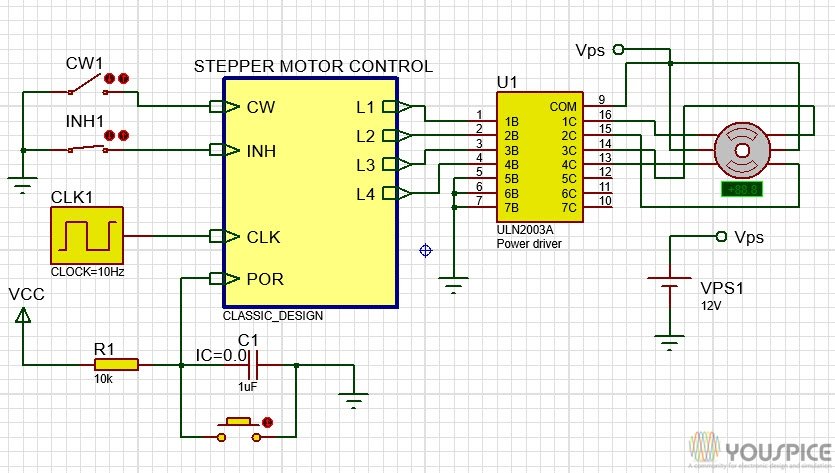

SPICE simulation of a stepper motor contrller. The control unit of stepper motor consists of 3 inputs and 4 outputs, INH that enables/disables the motor if low/high, CW that turns the motor clockwise/anticlockwise if high/low, and the CLOCK. The four outputs of the control unit drive the ULN2003A power driver accordly to the two phase drive sequence.Whole process of control unit design.

  • Free
  • Intermediate
  • 51-100
  • Proteus
  • 7+
  • Yes
  • Clockwise Anticlockwise Modules control unit
