Driver for APD Avalanche Photodiode with Op Amplifier
Transient analysis
Input voltage vs output voltage characteristic
AC response
  1. Driver for APD Avalanche Photodiode with Op Amplifier
  2. Transient analysis
  3. Input voltage vs output voltage characteristic
  4. AC response

Driver for APD Avalanche Photodiode with Op Amplifier

0 Credits

f459aca2-efe2-4e4f-b4ea-f55e08505889.rar

Login for download
Category:

Description

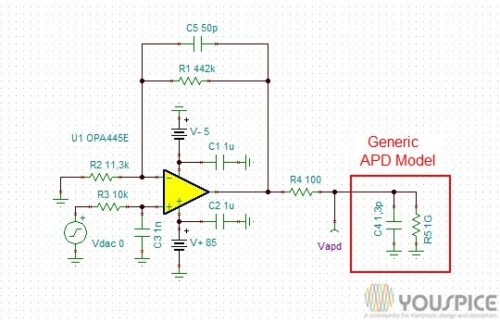

SPICE simulation of an operational amplifier 445 with asymmetrical power supply voltages that works as driver for and APD Avalache Photodiode.

  • Free
  • Intermediate
  • 11-20
  • TINA
  • 7+
  • Yes
  • Transient analysis Input voltage vs output voltage characteristic AC response
