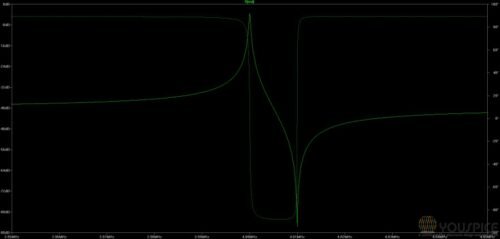

series resonance frequency fs is 4mhz and parallel frequency resonance fp is 4010 khz

SPICE Simulation of a Crystal Oscillator

0 Credits

d86fd5f1-10ca-4ef4-8888-96d33a4f58f3.rar

Login for download
Category:

Description

This circuit models the crystal with the low impedance series resonance and the high impedance resonance, through parameters Rs, Ls, Cs and Cp. the series frequency resonance is fs = 1/(6.28*SQRT(Ls*Cs)), and the parallel frequency resonance is fp= fs*SQRT(1+Cs/Cp)

  • Free
  • Simple
  • <10
  • LTspice
  • IV
  • No
  • series resonance frequency fs is 4mhz and parallel frequency resonance fp is 4010 khz

2 reviews for SPICE Simulation of a Crystal Oscillator

  1. billdu10 –

    not operationnal

  2. billdu10 –

    not usable
