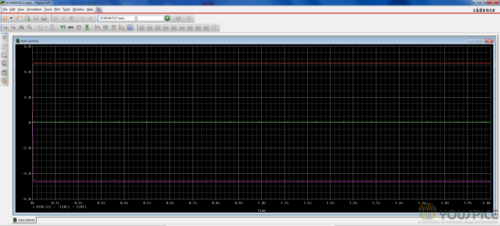

max short circuit current
current limite rto 250mA
stabilizer with IC transistor and voltage divider
Power supply with operational amplifier and darlington
current up to 2A
stabilizer with transistor and error amplifier
12 volt output regulated
8 volt output regulated
regulated output range from 8 to 12Volt
lower ripple on smooth capacitor with higher capacitance

Linear Regulated Power Supplies, part 1

10 Credits

Category:

Description

Theory and practical application with SPICE simulation of the main regulated power supplies. Power supply with IC and voltage divider, power supply with oerational amplifier, power supply with Zener and Darlington,power supply with Zener and Transistor, power supply with operational amplifier and short circuit protection with variable thresold, with IC voltage divider and transistor, with operational amplifier and Darlington, variable power supply with error amplifier.

  • For-Credits
  • Intermediate
  • >100
  • PSpice
  • 9.1+
  • No
  • Power supply with IC and voltage divider Voltage and current currents from IC to the load Power supply with operational amplifier Regulated voltage Power supply with Zener and Darlington Voltages and currents in Zener Darlington device Zener and transistor power supply Voltages and currents Zener transistor Power supply with operational amplifier short circuit protection and variable threshold Voltage stabilized and max current to the load max short circuit current current limite rto 250mA stabilizer with IC transistor and voltage divider Power supply with operational amplifier and darlington current up to 2A stabilizer with transistor and error amplifier 12 volt output regulated 8 volt output regulated regulated output range from 8 to 12Volt lower ripple on smooth capacitor with higher capacitance
