Buck Converter with a TPS40040 5.5V input 1.8 V output, 10 Ampere

0 Credits


Login for download


SPICE simulation of a buck converter, 4.5-V to 5.5-V input range, 1.8-V fixed output, this buck converter provides up to 10A of output current. The switching frequency is 300-kHz. The converter uses for both top and bottom MOSFETs, a Si4866DY N-channel fast switching MOSFET with low gate-source capacitance.

  • Free
  • Intermediate
  • 21-30
  • TINA
  • 7+
  • Yes

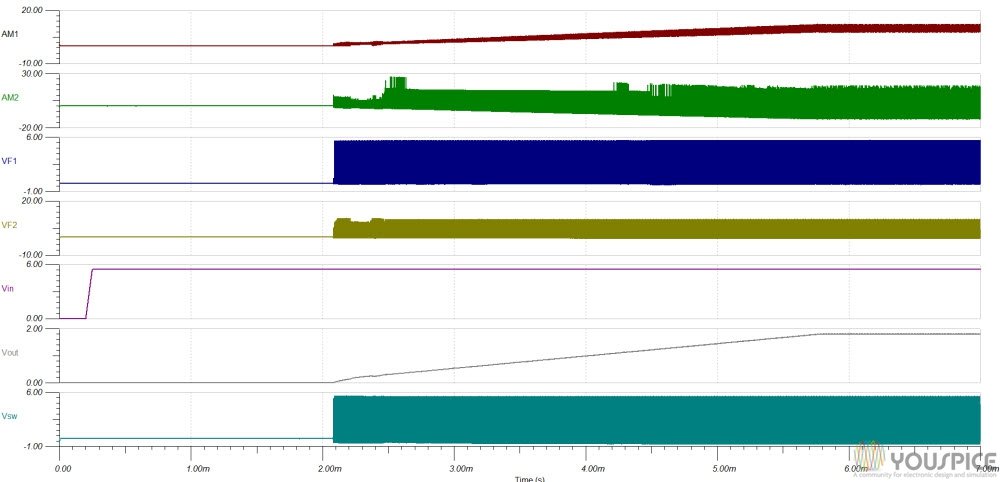

  • transient simulation AC response switching frequencies spectrum
