DC – DC Boost converter 5V – 13V with PIC16F88

Description

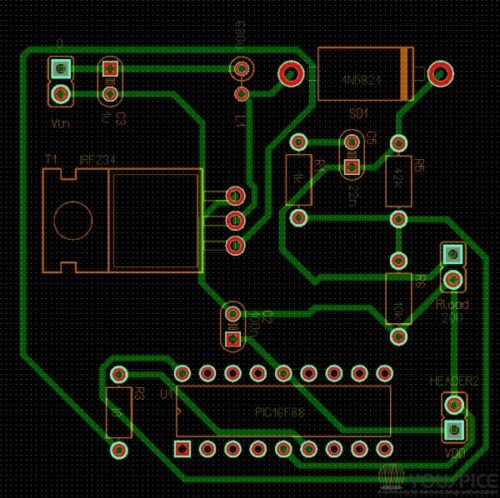

Low power boost converter with PIC16F88 microcontroller that drives a IRFZ34 power mosfet. Vin = 5V, Vout = 13V, Vripple = 10mV, 100 khz frequency work, 0.85 Watt

• Project Type: Free
• Complexity: Intermediate
• Components number: 11-20
• SPICE software: TINA
• Software version: 7+
• Full software version nedeed : Yes
• Screenshots simulation images:
