MC33363 8 Watt Off Line Converter

Description

SPICE simulation of an 8 watt off line converter. Vin is the rectified 240 Vac line source.The power supply provides 5V and 1.6 Ampere on 3 Ohm load. The device efficiency can reach 79.8% with MBR2535CTL.

• Project Type: Free
• Complexity: Advanced
• Components number: 31-50
• SPICE software: ICAP/4
• Software version: 8.1.6+
• Full software version nedeed : Yes

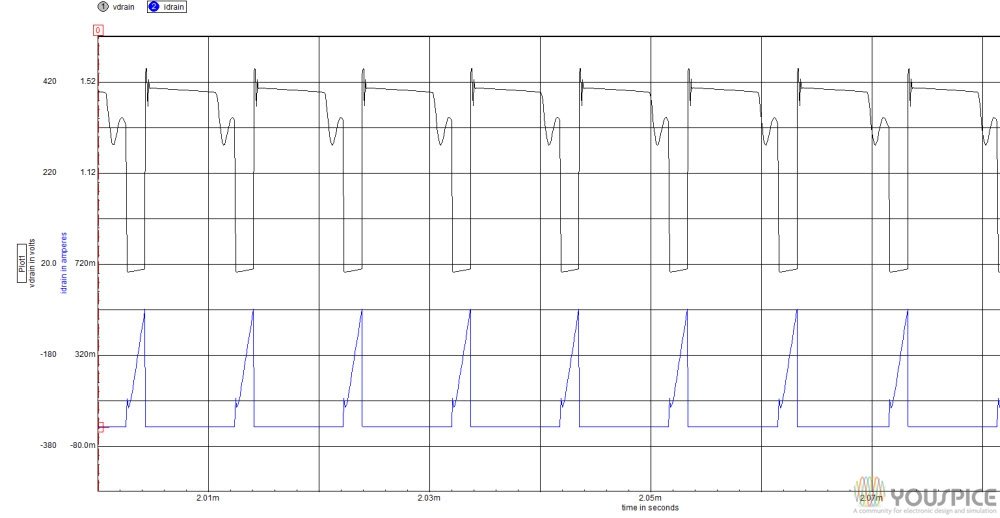

• Screenshots simulation images:
