UCC3895 Phase Shift PWM Controller

(1 customer review)

0 Credits


Login for download

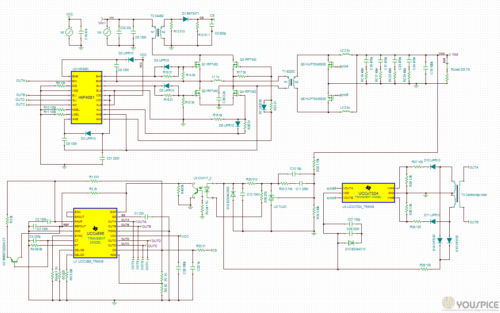

SPICE simulation of average and transient model of the UCC3895, a phase-shift PWM controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. It allows constant frequency PWM in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The input voltage is 50V and the output voltage is 3.3V. The transient SPICE simulation takes about 25 mins on a 4 core 2.8GHz machine.

  • Free
  • Advanced
  • 51-100
  • 9+
  • No

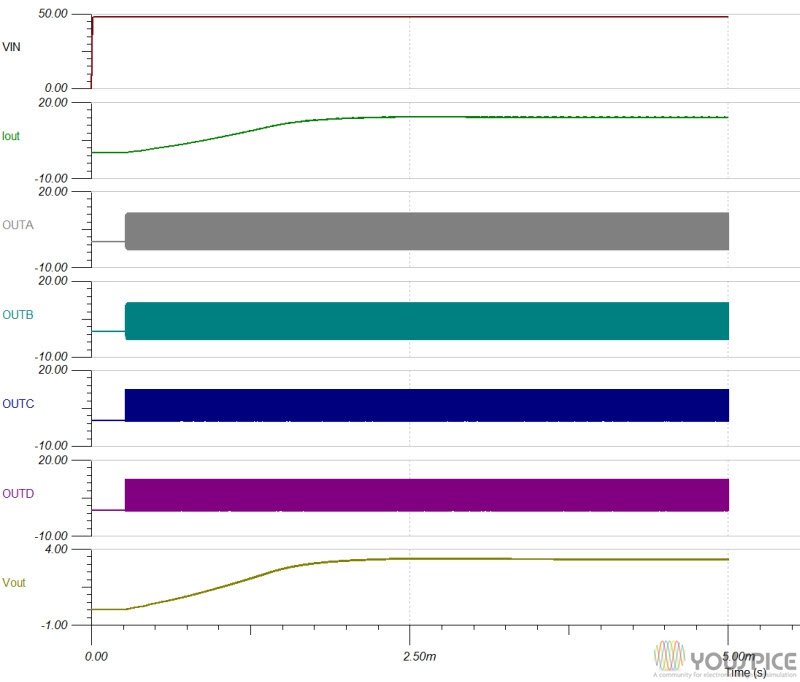

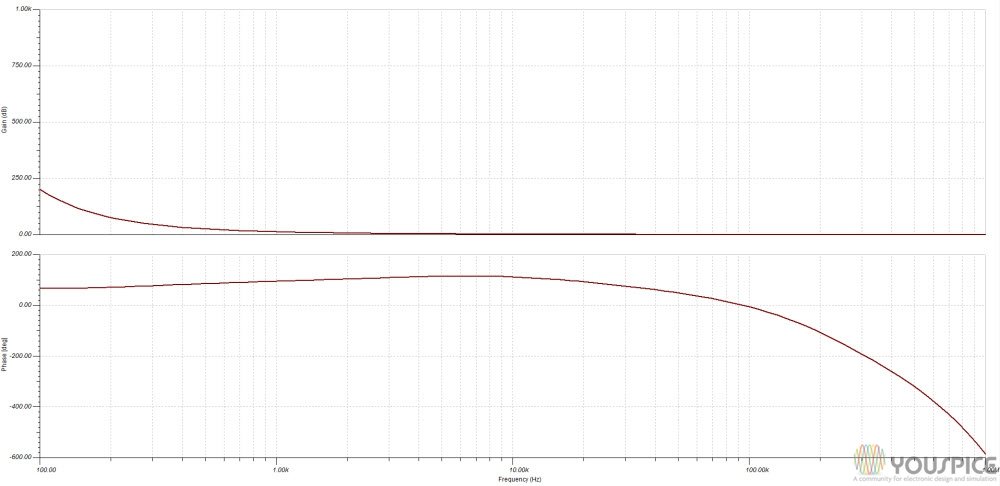

  • global transient overview output current and voltage outputripplevoltage output ripple average model bode plot
