LM13700 OTA Voltage Controlled Oscillator (+/- 5-Volt Power)

Description

A +/-5-volt version of an LM13700 OTA VCO. Two versions: A Diode Limited Leveller. A Gain Multiplier Leveller. State Variable Oscillator

• Project Type: Free
• Complexity: Intermediate
• Components number: 51-100
• SPICE software: LTspice
• Software version: April 2015
• Full software version nedeed : No

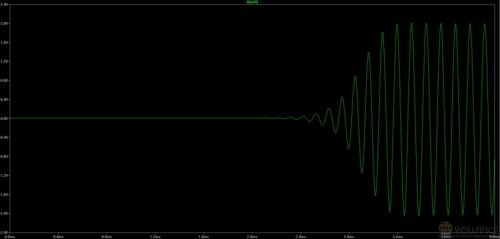

• Screenshots simulation images:
