Williamson 4 stages Class A amplifier 30W Ultralinear

8 Credits


PSPice simulation of a Power tubes amplifier with KT88 as final tubes and Ultralinear transformer. Power supply rectifier with tubes diodes 5U4, Ia-Va characteristic of KT88 in ultralinear mode 42%, Analysis of gain versus frequency, amount of feedback and its influence on damping factor.

  • For-Credits
  • Intermediate
  • 51-100
  • PSpice
  • 9.2+
  • Yes

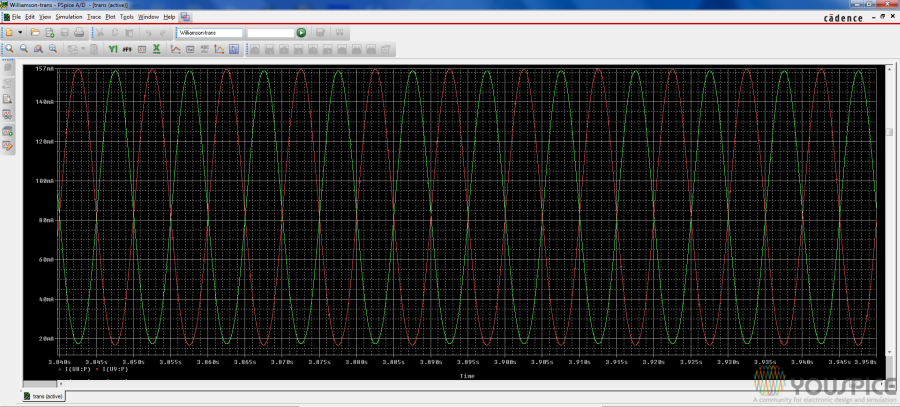

  • kt88characteristic Transient analysis of output voltage Transient analysis of anodic currents Transient analysis with rectified power supply input output waveforms anodic currents Gain after feedback and compensation
