Adjustable triangle waveform generator with dc shift bias (for auxiliary)

Description

To generate a triangle waveform with adjustable frequency and amplitude,then output with a DC voltage bias.
For auxiliary application ,to inject the generated signal into some certain pin of ICs.
Further more information will be shown in the file. This is practically useful.

• Project Type: For-Credits
• Complexity: Simple
• Components number: 21-30
• SPICE software: LTspice
• Software version: LTSpice IV
• Full software version nedeed : No

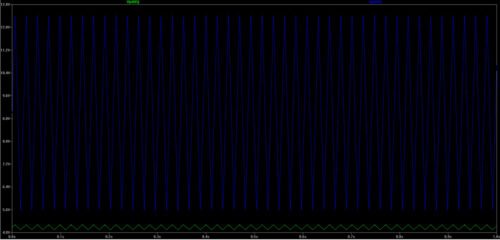

• Screenshots simulation images:
