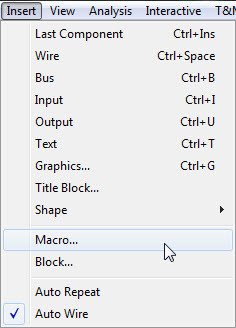

From now on, it’s possible to use the opa347 model with its symbol and place it into a circuit schematic. Go to the ‘Insert’ menu and select ‘Macro…
![](https://youspice.com/wp-content/uploads/2015/01/insertmacro.jpg)
The ‘Insert Macro’ window opens, and you can select the file with the opa347 macromodel
![](https://youspice.com/wp-content/uploads/2015/01/selectmacro.jpg)
let’s place the component into the schematic
![](https://youspice.com/wp-content/uploads/2015/01/firstinstance.jpg)
Right-click on it and select ‘Enter Macro’
![](https://youspice.com/wp-content/uploads/2015/01/entermacro.jpg)
the Netlist Viewer window appears
![](https://youspice.com/wp-content/uploads/2015/01/netlistviewer.jpg)
Now, replace the opa345 symbols with two instances of opa347
![opa347replaced](https://youspice.com/wp-content/uploads/2015/01/opa347replaced.jpg)
after running the AC analysis we get this frequency response
![opa347ACanalysis](https://youspice.com/wp-content/uploads/2015/01/opa347ACanalysis.jpg)
from the transient analysis simulation the Probe window shows these input and output waveforms
![opa347transientanalysis](https://youspice.com/wp-content/uploads/2015/01/opa347transientanalysis.jpg)
